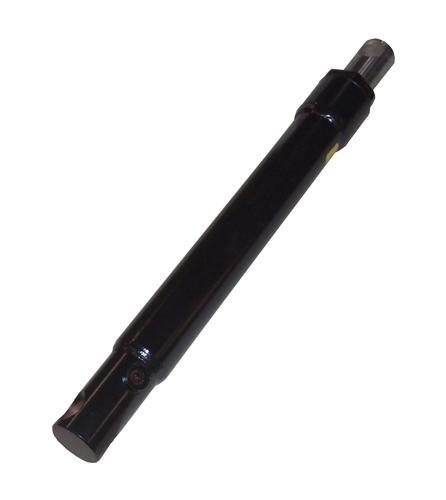

Aftermarket Western Lift Cylinder 1-1/2″ X 8″
Used on Unimount and Ultramount plows as Lift Cylinders, also Used as Angle Cylinder on LSX Unimounts.
Came on the Standard, Pro, Pro Plus, MVP and Wideout Plows.
Alternate Part Numbers: 56538K, 56538, W56538K, 1304201, SNP7752
Used on Unimount and Ultramount plows as Lift Cylinders, also Used as Angle Cylinder on LSX Unimounts.
Came on the Standard, Pro, Pro Plus, MVP and Wideout Plows.
Alternate Part Numbers: 56538K, 56538, W56538K, 1304201, SNP7752
Came on the Standard, Pro, Pro Plus, MVP and Wideout Plows.
Alternate Part Numbers: 56538K, 56538, W56538K, 1304201, SNP7752
Alternate Part Numbers: 56538K, 56538, W56538K, 1304201, SNP7752

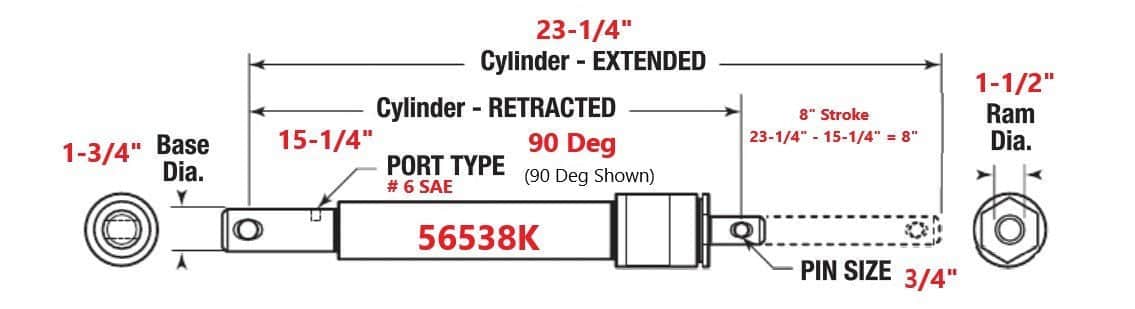

| Weight | 11.7 lbs |
|---|---|
| Dimensions | 17.5 × 3 × 3 in |
| Bore X Stroke | 1-1/2" X 8" |
| Acting | Single |
| Retracted | 15-1/4" |
| Extended | 23-1/4" |
| Ram Dia | 1-1/2" |
| Base Dia | 1-3/4" |
| Pin Size | 3/4" |
| Port Type | #6 SAE |
| Port Location | 90 Degree to Pin Hole |
