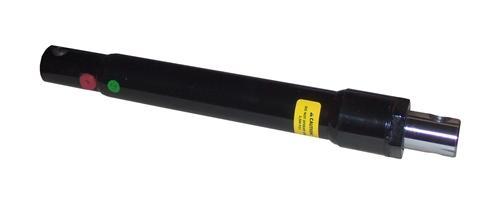

Aftermarket Western Ultramount Angle Cyinder 1-1/2″ X 10″
Used on Ultramount Standard and Pro Plows
Note: More than one option was used on these plows so please make sure to review dimensional information prior to ordering
Alternate Part Numbers: 56614, W56614, SNP7755, 1304202
Used on Ultramount Standard and Pro Plows
Note: More than one option was used on these plows so please make sure to review dimensional information prior to ordering
Alternate Part Numbers: 56614, W56614, SNP7755, 1304202
Note: More than one option was used on these plows so please make sure to review dimensional information prior to ordering
Alternate Part Numbers: 56614, W56614, SNP7755, 1304202
Alternate Part Numbers: 56614, W56614, SNP7755, 1304202

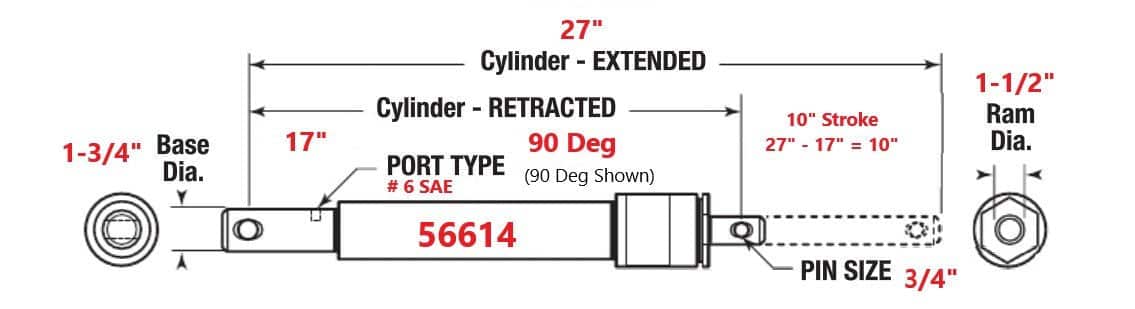

| Weight | 13.7 lbs |
|---|---|
| Dimensions | 20 × 3 × 3 in |
| Bore X Stroke | 1-1/2" X 10" |
| Acting | Single |
| Retracted | 17" |
| Extended | 27" |
| Ram Dia | 1-1/2" |
| Base Dia | 1-3/4" |
| Pin Size | 3/4" |
| Port Type | #6 SAE |
| Port Location | 90 Degree to Pin Hole |
