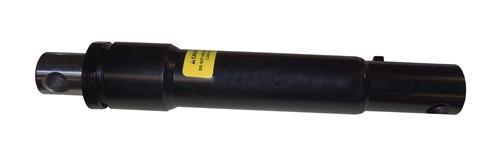

25200 Western Lift Cylinder 1-1/2″ X 6″ – Aftermarket
Original price was: $144.72.$127.36Current price is: $127.36.
6 in stock (can be backordered)
NOTE: PRICING MAY CHANGE WITHOUT NOTICE. PLEASE REVIEW BEFORE ORDERING. Dismiss
Skip to content
$144.72 Original price was: $144.72.$127.36Current price is: $127.36.
6 in stock (can be backordered)

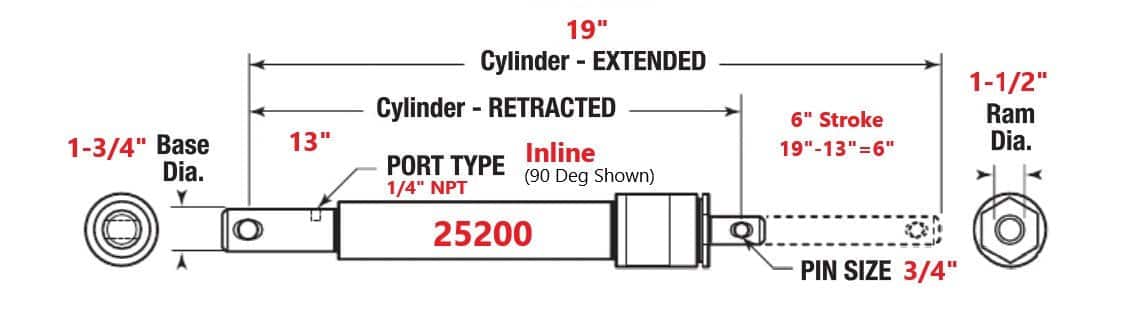

| Weight | 9.3 lbs |
|---|---|
| Dimensions | 16 × 3 × 3 in |
| Bore X Stroke | 1-1/2" X 6" |
| Acting | Single |
| Retracted | 13" |
| Extended | 19" |
| RAM Dia. | 1-1/2" |
| Base Dia. | 1-3/4" |
| Pin Size | 3/4" |
| Port Type | 1/4" NPT |
| Port Location | In-Line with Pin |
6 in stock (can be backordered)
