07968 Meyer Angle Cylinder 1-1/2″ X 10″ Cross Drilled O-Ring Port – Aftermarket

Original price was: $197.95.Current price is: $168.25.

8 in stock

SKU: M07968 Categories: , Tag:

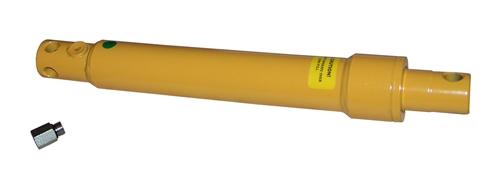

Aftermarket Meyer Angle Cylinder 1-1/2″ X 10″ Cross Drilled O-Ring Port

Has a cross drilled rear base so you can put the hose where you need to

Has the newer SAE threads NOT the NPT but comes with an adapter # 22652 to use NPT hoses

Alternate Part Numbers: 07968, M07968, 1-M07968, SNP6117, 1304006

Weight 12.7 lbs
Dimensions 18.5 × 3 × 3 in

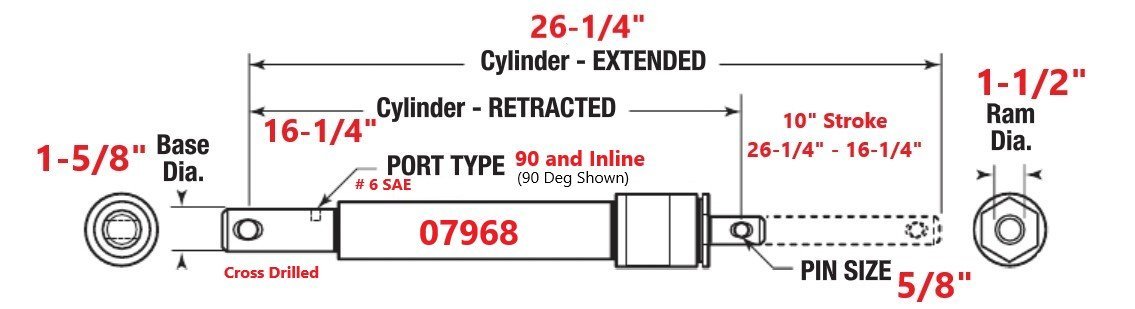

Bore X Stroke

1-/12" X 10"
Acting

Single
Retracted

16-1/4"
Extended

26-1/4"
RAM Dia.

1-1/2"
Base Dia.

1-5/8"
Pin Size

5/8"
Port Type

# 6 SAE
Port Location

90 Degree and In-Line to Pin
