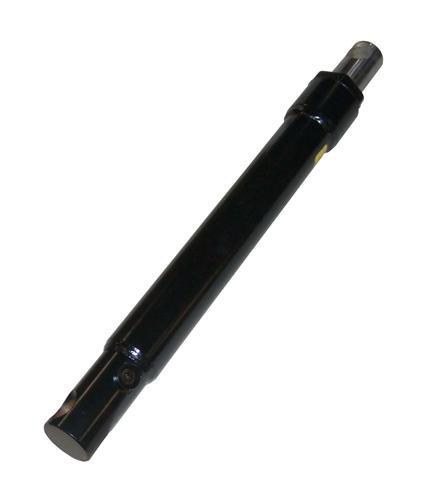

Aftermarket Fisher RD HD X Blade Angle Cylinder 1-1/2″ X 12″
This is the O-Ring SAE style threads. If you have the NPT pipe thread style you will need to order # 20117K.
Alternate Part Numbers: 56603, 56603K, F56603K, F56603
This is the O-Ring SAE style threads. If you have the NPT pipe thread style you will need to order # 20117K.
Alternate Part Numbers: 56603, 56603K, F56603K, F56603
Alternate Part Numbers: 56603, 56603K, F56603K, F56603
| Weight | 15.5 lbs |
|---|---|
| Dimensions | 22.5 × 3 × 3 in |

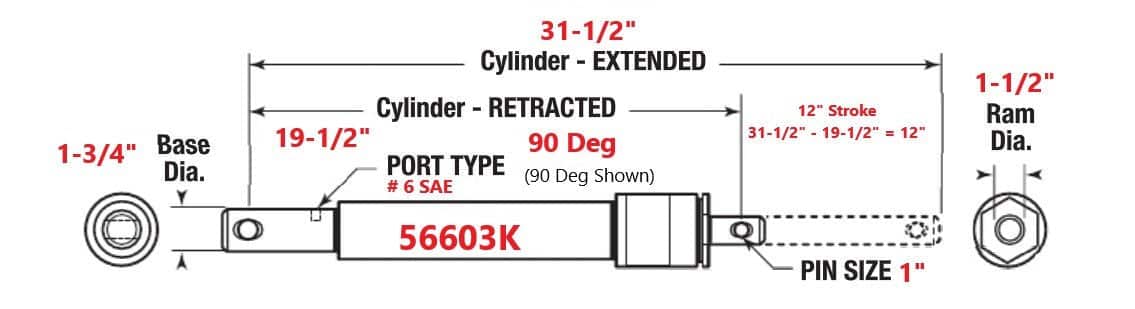

| Bore X Stroke | 1-1/2" X 12" |
| Acting | Single |
| Retracted | 19-1/2" |
| Extended | 31-1/2" |
| RAM Dia. | 1-1/2" |
| Base Dia. | 1-3/4" |
| Pin Size | 1" |
| Port Type | # 6 SAE |
| Port Location | 90 Degree |
